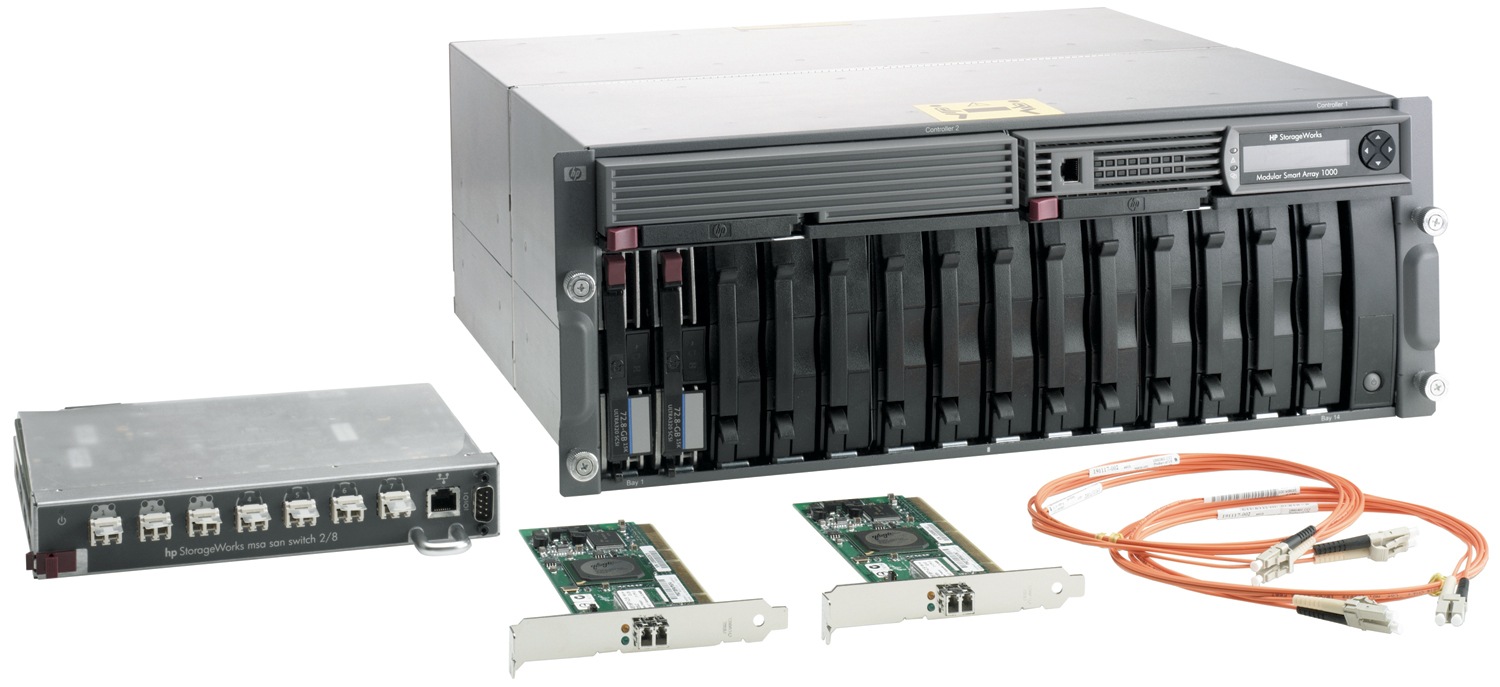

HP StorageWorks Modular Smart Array 1000 SAN Starter G2 Kit

HP StorageWorks Modular Smart Array 1000 SAN Starter G2 Kit - hard drive ar
Product ID
C-K Part: CK92105
Mfg. Part: 353803-B23
Information technology professionals rely on HP quality to ensure maximum productivity. As the power of applications, processors, memory adapters and storage devices increases, high-end computer users are seeking ways to optimize their system performance. HP provides leading solutions, adding new levels of performance, availability, flexibility, and management.

$ 8859.99 Back
Quantity:

Bay Provided

Form Factor 3.5" x 1/3H
Free Qty 14
Total Qty 14
Type Hot-swap

Cabinet

Chassis Built-in Devices Status LCD

Cabinet (Chassis)

Installed Devices Modules Qty 0
Supported Devices Modules Qty 14
Supported Interface Ultra160 SCSI

Environmental Parameters

Humidity Range Operating 10 - 90%
Max Operating Temperature 95 °F
Min Operating Temperature 50 °F

Header

Compatibility PC, Unix
Manufacturer Hewlett-Packard
Model 1000 SAN Starter G2 Kit
Packaged Quantity 1
Product Line HP StorageWorks Modular Smart Array

Interface Provided

Connector Type LC
Interface (Storage) 2Gb Fibre Channel
Qty 1
spacing image
Interface (Storage) Ultra160 SCSI
Qty 4
SCSI Signaling Type LVD

Miscellaneous

Height (Rack Units) 4
Included Accessories (CI) 2x HP StorageWorks FC1142SR HBA, HP StorageWorks MSA SAN Switch 2/8
Rack Mounting Kit Included

Power Device

Form Factor Plug-in module
Frequency Required 50/60 Hz
Installed Qty 2
Max Supported Qty 2
Nominal Voltage AC 120/230 V
Power Redundancy Yes
Power Redundancy Scheme 1+1
Type Power supply - hot-plug

Service

Support Details Full Contract Period 3 years
Support Details Service Included Parts
Support Details Type Limited warranty
spacing image
Support Details Full Contract Period 1 year
Support Details Location On-site
Support Details Service Included Parts and labor

Service & Support

Type 3 years warranty

Slot Provided

Free Qty 0
Total Qty 1
Type SFP (mini-GBIC)

Software

Type Drivers & Utilities

Storage

HDD Array External Interface 2Gb Fibre Channel
HDD Array External Interface Class Fibre Channel
Max Supported Capacity 4 TB
Rack-mountable Rack-mountable
Type Hard drive array

Storage Controller

Buffer Size 256 MB
Channel Qty 4
Controller Interface Type Ultra160 SCSI
Data Transfer Rate 160 MBps
Form Factor Plug-in module
Interface Type 2Gb Fibre Channel
Max Buffer Size 512 MB
Max Storage Devices Qty 42
RAID Level ADG, RAID 0, RAID 1, RAID 10, RAID 5
Supported Devices Disk array (RAID), Hard drive
Type RAID

Storage Controller (2nd)

Type None

Storage Hard Drive

Enclosure Type Plug-in module
Installed Qty 0
Type Hot-swap

Storage Hard Drive (2nd)

Type None

Dimensions & Weight

Depth 20.5 in
Height 6.9 in
Weight 55.1 lbs
Width 19 in
